If you need to replace your power adapter or are looking for specific hardware dimensions for your Apolosign Digital Calendar, please refer to the technical specifications below.
Power Adapter Specifications
Model Size | Output Voltage/Current | Barrel Plug Size |
|---|---|---|
15.6" Digital Calendar | 12V 2A | 4.0 * 1.7 * 10mm |
21.5" Digital Calendar | 12V 3A | 4.0 * 1.7 * 9mm |
27" Digital Calendar | 12V 3A | 4.0 * 1.7 * 10mm |
27" 4K Digital Calendar | 12V 3A | 4.0 * 1.7 * 10mm |
General Adapter Info:
Cable Length: 2.5 meters (approx. 8.2 feet) for all models.
Input Range: 100-240V ~ 50/60Hz.
Adapter Size & Aesthetic Solutions
Why Isn't There a Smaller Adapter?
We understand that some customers prefer a more compact power adapter for a cleaner, more minimal look — especially when wall-mounting the digital calendar. However, the adapter size is determined by the power requirements of each model and cannot be reduced without compromising safety:
- The 15.6" model requires 12V / 2A (24W), while the 21.5", 27", and 27" 4K models each require 12V / 3A (36W).
- Delivering this level of power safely requires adequately sized internal components for heat dissipation and voltage regulation. A physically smaller adapter would risk overheating, unstable voltage output, or premature failure.
- For safety and reliability reasons, we do not offer a smaller alternative adapter, and we do not recommend using third-party underpowered adapters, as this may damage your device or void the warranty.
⚠️ Important: Using an undersized or uncertified third-party power adapter may cause overheating, device malfunction, or permanent damage to your Digital Calendar. Always use the original Apolosign adapter or an identical replacement.
Recommended Solution: Recessed Power Box / In-Wall Power Kit
To achieve a clean, cable-free appearance without compromising on power safety, we recommend installing a recessed power box (also known as an in-wall power kit or low-profile recessed wall plate). This is the most popular and effective way to hide the adapter from view:
- Hide the adapter entirely — The power adapter sits inside the recessed enclosure or behind the wall, completely invisible from the front.
- Route the cable neatly — Only the DC barrel plug emerges at the mounting location, keeping the wall surface clean.
- Maintain full power delivery — No compromise on performance or safety; the original adapter is used as-is.
- Universal compatibility — These kits work with any wall-mounted TV or display, not just the Apolosign Digital Calendar.
💡 What to Look For When Purchasing:
- Choose a recessed wall box or in-wall cable management kit with enough interior space to fit the adapter (approximately 10 cm × 5 cm × 3 cm).
- Ensure the kit includes a power pass-through or extension compatible with your wall outlet type.
- These kits are widely available on Amazon and other retailers — search for "in-wall power kit," "recessed power box," or "TV power cord hide kit."
📋 Installation Note:
Installing an in-wall power kit requires basic DIY skills and may involve drilling and running cables inside the wall. If you are unsure, we recommend consulting a professional installer. Always follow your local electrical codes and building regulations.

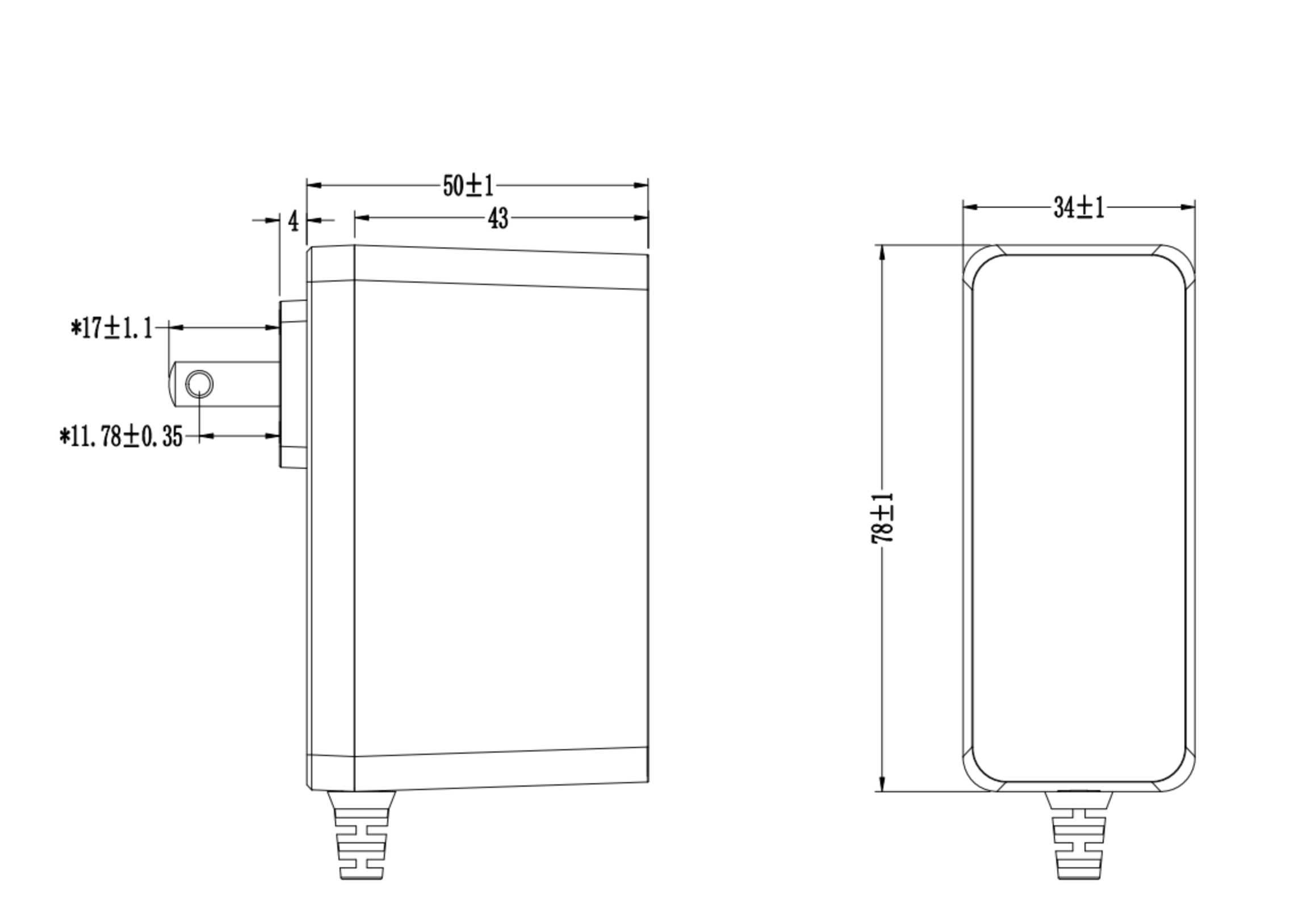

Adapter Connector Diagram
VESA Mounting Information
VESA: 100mm*100mm
Screw Hole Diameter: M4
