This guide introduces the key things you should know before using your Portable TV for the first time. It covers power and charging, battery indicator lights, physical buttons, and camera installation, helping you get started quickly and safely.
1. Power & Charging Basics
Before turning on the device, make sure you understand how it is powered.
The Portable TV supports two power modes:
● Using the power adapter (plugged into the base)
● Using the built-in rechargeable battery
To use the power adapter, plug it into the base of the stand. When connected properly, the base indicator light will turn on, confirming that power is being supplied.
Important notes:
● The DC port is used to power the device only. It is not a charging port for external devices.
● Do not allow children to play with the power adapter.
● Keep the power adapter away from water.
● When the adapter is plugged into the wall, avoid moving the product excessively to prevent damage to the power cord or risk of electric shock.
2. Understanding the Battery & Indicator Lights
The stand contains a built-in rechargeable battery, allowing the device to be used without being connected to external power for a period of time.

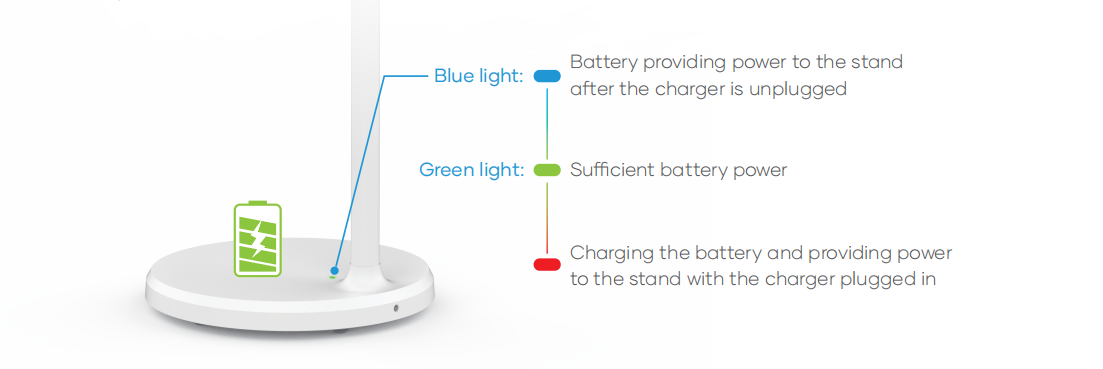

Battery Indicator Light Status
● Red light: The battery is charging (charger plugged in)
● Green light: The battery is fully charged or has sufficient power
● Blue light: The device is running on battery power (charger unplugged)
Charging Time & Battery Care
● Charging takes approximately 3 hours when the device is powered off
● Charging takes approximately 4 hours if the device remains in use
● Battery life and runtime vary depending on usage
To extend battery lifespan:
● Charge the battery after it has been used for a period of time
● Avoid leaving the battery fully charged for long periods
● Do not charge the battery under extreme temperature conditions
3. Touchscreen & Physical Button Overview
The Portable TV features a 10-point capacitive touchscreen for smooth and responsive operation. To maintain optimal touch performance, keep the screen clean.

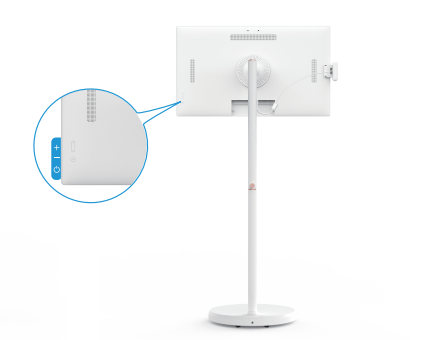

There are three physical buttons located on the lower right corner of the back of the screen:
Button Functions
● Power Button
When the device is off: press and hold for 2–3 seconds to power on
When the device is on:
○Press and hold for 2–3 seconds to open the shutdown/restart menu
○Short press to turn the screen off
○Short press again to wake the screen
● “+” Button
Increase system volume
● “–” Button
Decrease system volume
4. How to Use an External Camera
An external camera can be connected to the Portable TV via USB.

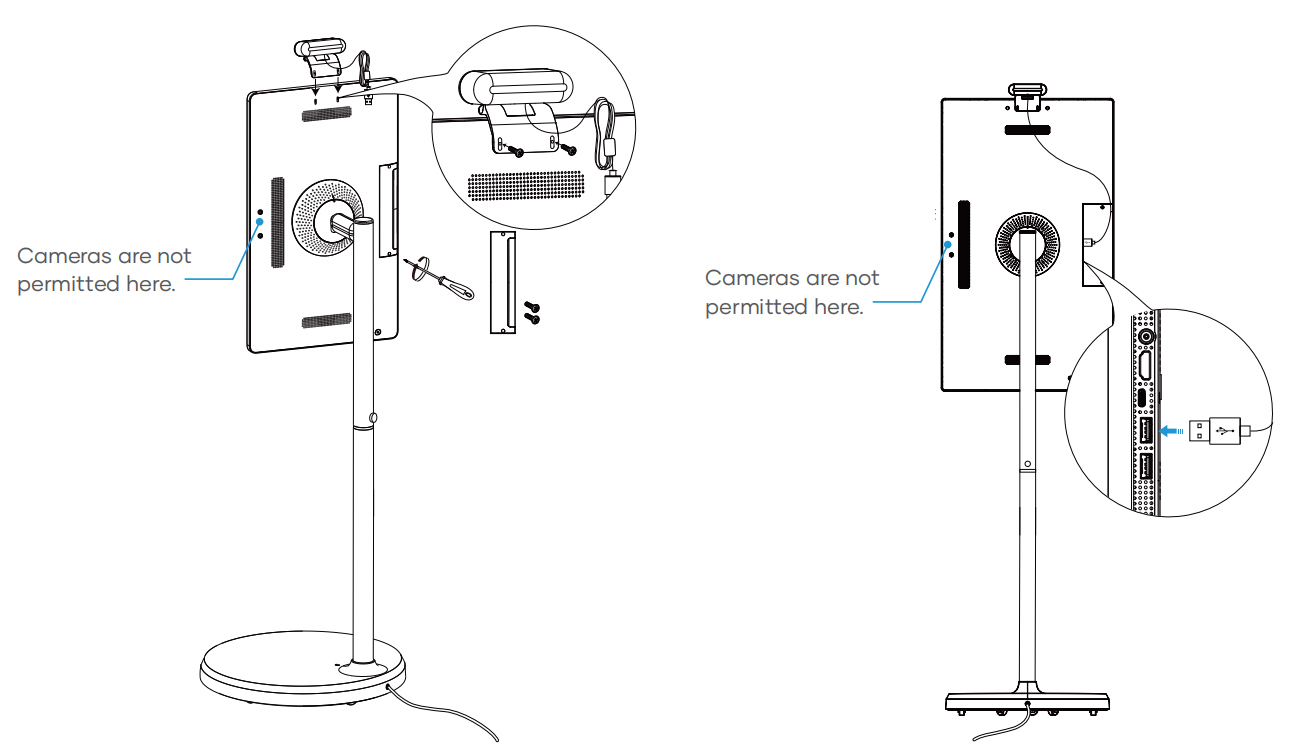

When installing a camera:
● Install the camera vertically to support both horizontal and vertical shooting
● Only install the camera in the supported positions shown in the diagram
● Do not install the camera in restricted areas
● Ensure the camera cable does not interfere with screen movement
Proper installation ensures stable performance and the best video experience.
5. Before You Start Using the Device
Once the device is properly powered, charged, and you are familiar with the buttons, you are ready to begin using your Portable TV.
After powering on, you can proceed with basic setup such as selecting a language, connecting to Wi-Fi, and signing in to your Google account. Some optional steps, such as data syncing, can be skipped to help you enter the main interface more quickly.
For detailed first-time setup steps, please refer to the Portable TV Quick Setup Guide
